TG2/CB401805A
Article number: 401805
Application: for MIG/MAG, TIG, SAW and MMA (Manual Metal Arc) welding.
Applicable for one-side welding of CO2 shielded metal with double-welding and hidden arc welding. Has fiberglass tape for surface strengthening.
Clearance 15-20 mm for width 40mm backing

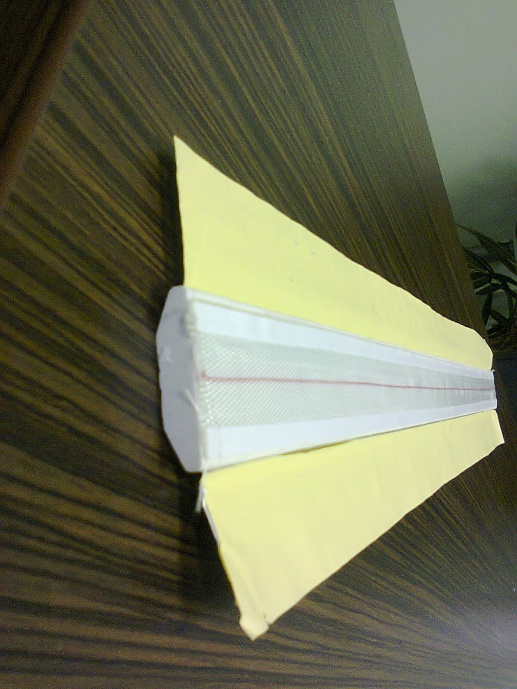

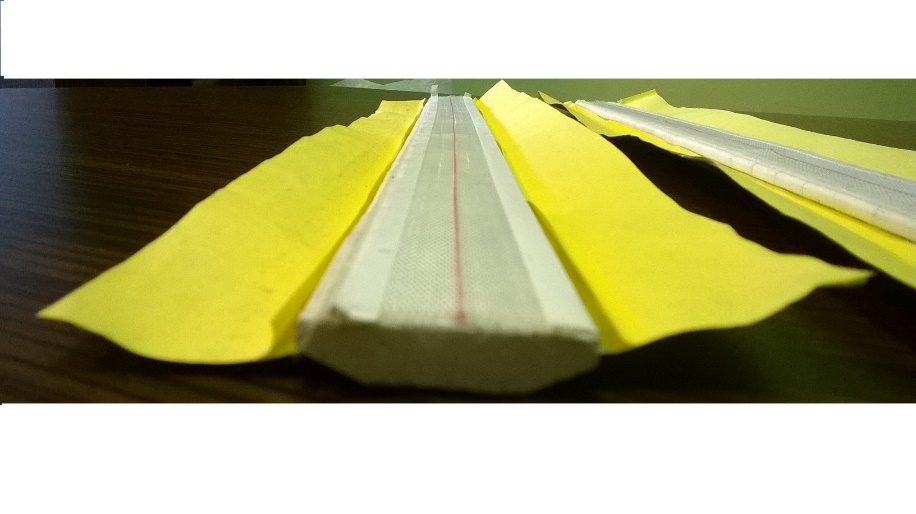

- Flat ceramic backing
- 36mm wide with 18 mm groove
- Round groove for butt welding

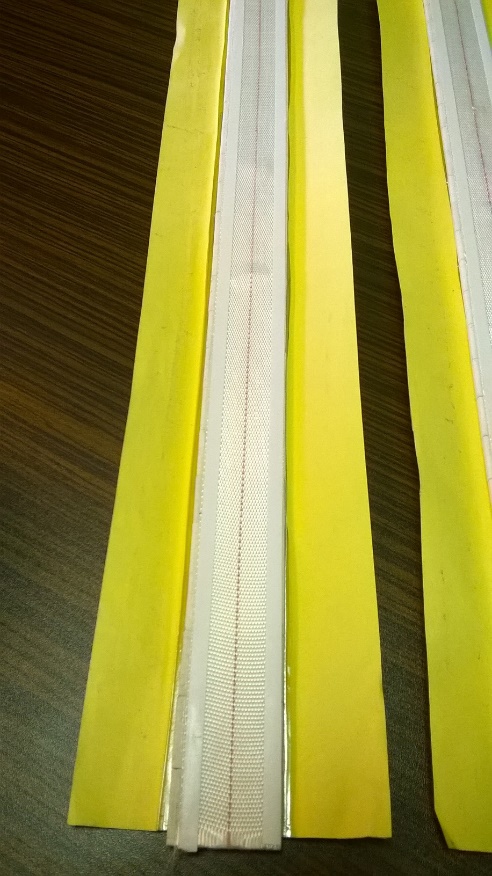

- Supplied on Alu-tape, 100mm wide
Details:

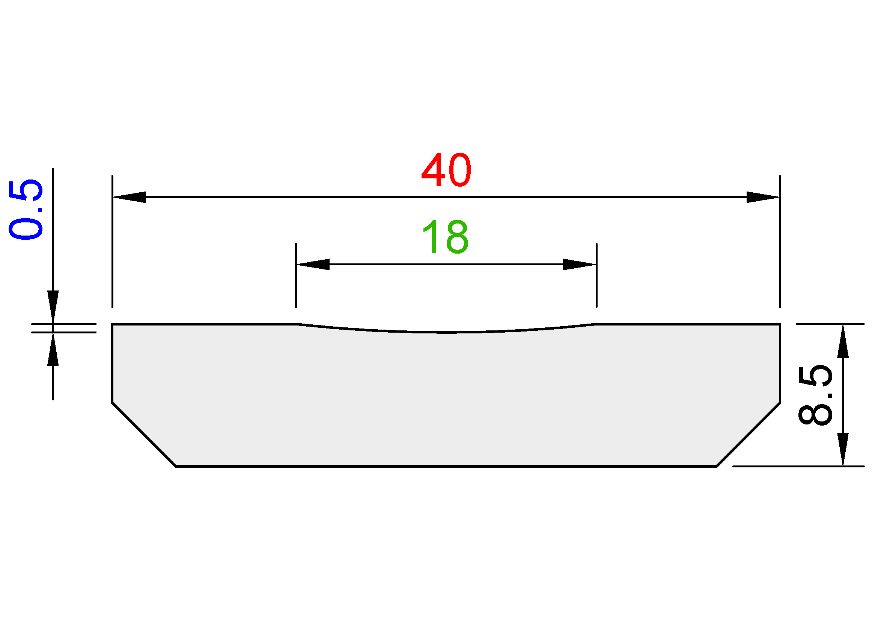

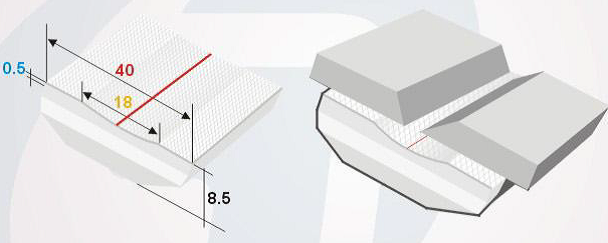

| Segment Width | 36mm |
| Groove width | 18mm |
| Groove depth | 0.5mm |
| Segment length | 28mm |
| Total length | 600mm |
Packaging information:
| Pieces pr box | 40 pcs(24m) |
| 4 pieces per bag (2,4 meters) | |
| Box weight / size | 16 kg / 630 x 240 x 110 mm |
